Compressed Air Dryer

We are the authorized dealer of Drytech Engineers Pvt Ltd.

Refrigerated Dryers

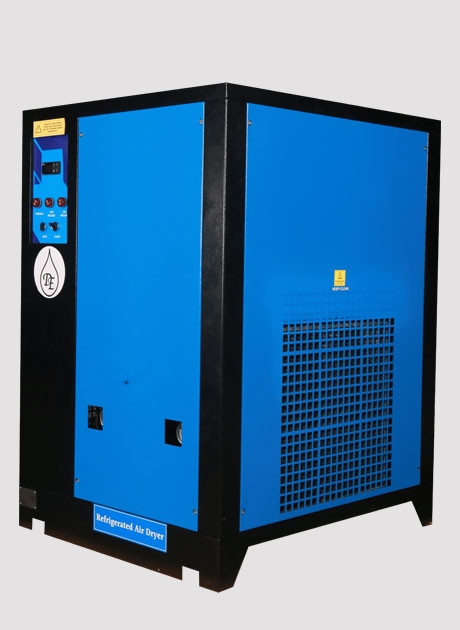

Refrigerated Dryers

Liquiair, the accredited dealer of ‘Drytech Engineers Pvt Ltd’ provide you with an RD series refrigerated drying unit that delivers compressed air with quality of air as per ISO specification as advised to various applications.

Salient Features

  • Very convenient and a proper fit for the Indian atmospheric conditions.
  • The entire dryer operation can be overviewed through the display in the front panel.
  • Inlet/outlet digital compressed air temperature indication as an option.
  • Minimum pressure drops.
  • Adopted environment-friendly refrigerant system.
  • Compact design with maintenance-friendly proficiency.

Why filter combination is important?

Because of the limitations in design, refrigerated dryer usually faces difficulty in reattainment of moisture in the line. This occurs as a result of the moisture separator which separates only bigger oil and moisture droplets and permits aerosols/mist to skip downstream lines. Therefore, to enhance the quality of air up to 99.999% efficiency.

Model Capacity Capacity Max. Operating Pressure Power Supply Version* Dimensions (mm) Dimensions (mm) Dimensions (mm)
  M2/min cfm Kg/cm2 V/Ph/Hz BSPT(F)1/2” L W H
RDV-A 17 10 15 230/1/50 BSPT(F)1/2” 500 400 625
RDV3-A 34 20 15 230/1/50 BSPT(F)1/2” 500 400 625
RD001-A 51 30 15 230/1/50 BSPT(F)1/2” 500 400 625
RD001V-A 80 45 15 230/1/50 BSPT(F)3/4” 500 400 625
RD002-A 100 60 15 230/1/50 BSPT(F)3/4” 500 400 625
RD002V-A 130 75 15 230/1/50 BSPT(F)1” 700 550 850
RD003V-A 170 100 15 230/1/50 BSPT(F)1” 700 550 850
RD004-A 212 125 15 230/1/50 BSPT(F)1 1/2” 700 550 850
RD004V-A 255 150 15 230/1/50 BSPT(F)1 1/2” 700 500 850
RD007-A 340 200 15 230/1/50 BSPT(F)1 1/2” 760 650 1000
RD007V-A 425 250 15 230/1/50 BSPT(F)1 1/2” 760 650 1000
RD010-A 510 300 15 230/1/50 Flgd2” 950 850 1250
RD011V-A 595 350 15 415/3/50 Flgd2” 950 850 1250
RD015-A 765 450 15 415/3/50 Flgd2” 950 850 1250
RD018-A/W 935 550 15 415/3/50 Flgd2 ½” 1050 900 1400
RD021V-A/W 1105 650 15 415/3/50 Flgd2 ½” 1050 900 1400
RD025-A/W 1275 750 15 415/3/50 Flgd2 ½” 1050 900 1400
RD030-A/W 1530 900 15 415/3/50 Flgd3” 1250 1000 1550
RD033V-A/W 1700 1000 15 415/3/50 Flgd3” 1250 1000 1550
RD037-A/W 1870 1100 15 415/3/50 Flgd3” 1250 1000 1550
RD040-A/W 2040 1200 15 415/3/50 Flgd4” 1500 1100 1425
RD050-A/W 2550 1500 15 415/3/50 Flgd4” 2400 1425 1650
S1100R 31.15 1100 16 230/1/50 AIR-COOLED 1250 1000 1550

Performance Data Based on Design Data

Ambient temperature 400C
Intel Temperature 450C
Intel Pressure 7Kg/cm0
Pressure Dew Point 3-70C
Maximum Ambient Temperature 500C
Minimum Intel Temperature 50C
Maximum Intel Temperature 650C
Maximum Intel Temperature 16 Kg/cm2xxc

Ambient Temperature (Y)

Temp. 25 30 3 40 45
CF 1.12 1.08 1.04 1 0.96

Inlet Temperature (Y)

Temp. 35 40 45 50 55
CF 1.06 1.03 1 0.9 0.75

Selection Factors Conversion factors at various intel pr.

Op.pr(Kg/cm2g) Pr.Factors Intel tempR (0C) Ambient tempR (0C)
4 0.63 35 1.00 35 1.00
5 0.75 40 0.82 40 0.92
6 0.87 45 0.69 45 0.84
7 1.00 50 0.58
8 1.13
9 1.25
10 1.35

Selection Criteria

  • As per ISO 8573.1 for various applications
  • Eco friendly
  • Energy efficient
  • Easily available spare parts at affordable cost with service
  • Based on proper flow, pressure and temperature basis for better efficiency

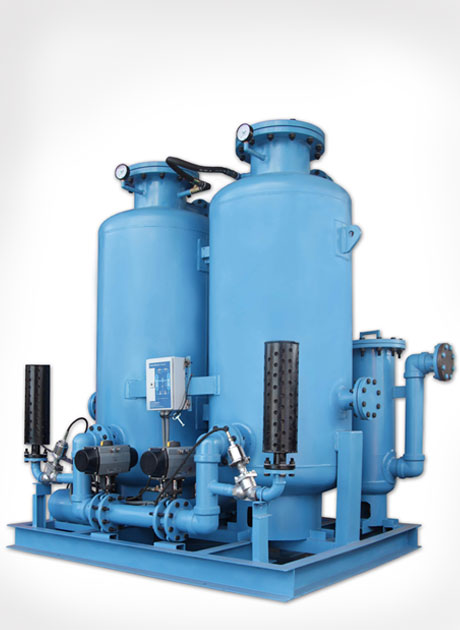

Heatless Air Dryer

The existence of oil, moisture and dust particles in compressed air is acknowledged for industrial applications. With the progress of technology and the indication of sophisticated and contemporary machinery working on compressed air, the utilization of the recommended quality class of air according to the manufacturer of the machines or International Standard Organization or Pneurope recommendation has become essential. Drytech heatless air dryer with the use of filtered, dry air as advised above leads to less wear and tear, enhanced machine uptime, lower rejections, superior product quality and most importantly considerable energy saving.

Salient Features

  • Functioning on the principle of ADSORP- Therefore preventing the entrainment of moisture in the pipeline however long it may be.
  • The most convenient skid-mounted unit provided in the READY FOR USE state by connecting compressed air at the inlet and outlet.
  • The stationary working system needs negligible maintenance. Guaranteed atmospheric dew point equal to (-) 40 deg. C. or (-) 70 deg C as necessary.
  • Ideal purging as per the desiccant manufacturer’s instruction for regeneration.
  • Insignificant pressure drop in total units.
  • Advanced purge silencer generating less noise.
  • Intentionally crafted for Indian atmospheric conditions.
  • Trouble-free installation and commissioning.

Drytech Air Drying Unit

HD series (Heatless) type supplies quality class of air in demand according to different recommendations for varied pneumatic applications.

The stationary air drying unit demanding minor maintenance, lesser operating cost and a prolonged service life is the ideal choice for pneumatically operated machines which require purified compressed air.

Operation

The complete ADU operates in the following three modes.

S/N Model Flow Nm/HR Flow SCFM END CONN CONN TYPE Length Width Height WT KGS (APPX)1
1. HD V 9 5 ½” BSPT(F) 650 400 1000 25
2. HD V1 17 10 ½” BSPT(F) 750 450 1250 35
3. HD V2 25 15 ½” BSPT(F) 800 450 1700 70
4. HD V3 34 20 ½” BSPT(F) 800 450 1700 88
5. HD 001 50 30 ½” BSPT(F) 900 500 1800 105
6. HD 001V 80 45 3/4” BSPT(F) 900 500 1820 150
7. HD 002 100 60 ¾” BSPT(F) 950 500 1830 180
8. HD 002V 130 75 ¾” BSPT(F) 950 500 2100 190
9. HD 003V 170 100 1” BSPT(F) 1200 700 2100 350
10. HD 004V 240 140 1” BSPT(F) 1250 1000 2200 380
11. HD 007 340 200 11/2” FLGD.ASA150# 1250 1000 2030 430
12. HD 009V 475 280 11/2” FLGD.ASA150# 1500 1150 2150 560
13. HD 012V 650 380 2” FLGD.ASA150# 1800 1200 2250 670
14. HD 016V 850 500 3” FLGD.ASA150# 1850 1200 2250 980
15. HD 020V 1050 620 3” FLGD.ASA150# 2000 1400 2250 1250
16. HD 025 1290 760 3” FLGD.ASA150# V2000 1400 2250 1860
17. HD 038 1940 1140 4” FLGD.ASA150# 2400 1800 2250 3850

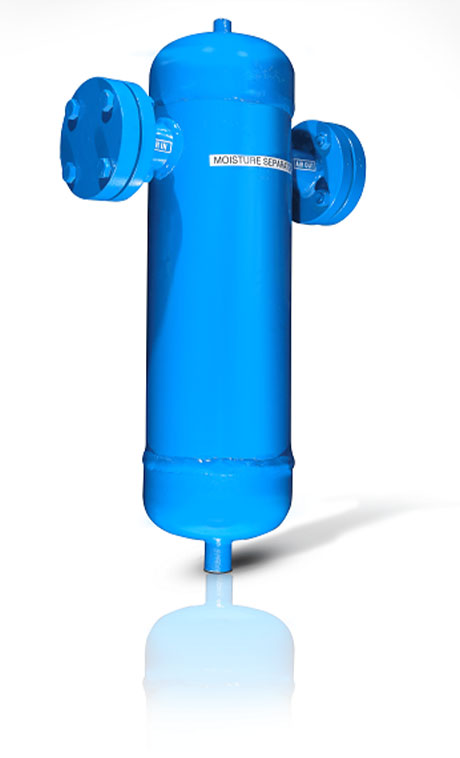

Moisture Separators

The moisture present in compressed air advances into the separator in a tangent manner and then travels forward and passes through baffles which eventually leads to the spinning of air around the inner separator pipe. The droplets of water are impinged on the separator wall by this centrifugal activity.

This process segregates the water droplets from the air. Here, the speed of air achieves its maximum point at the bottom of the separator. Then, the air enters the inner pipe causing the change of direction, and ultimately the droplets separate. The air flows through the demister pad, where the moisture separates in wire mesh and the tiny droplets separate and get gathered at the bottom of the separator.

The device is designed in an advanced manner focusing on the impingement principle and its fundamental function is to separate the bulk quantity of bigger oil and moisture droplets from compressed air. The separated oil and moisture get successfully collected in the sump and then get competently drained out by providing an appropriate drain at the bottom.

Salient Features of Drytech Moisture Separator

  • High temperature/high-pressure range is available.
  • Powerful and convenient design.
  • Indigenously manufactured.
  • Maximum working life.
  • Low maintenance cost.

Technical Specifications

Range

  • 1/2" to 12" line size at an operating pressure of 16 Kg/cm2.

MOC

  • Housing – As per IS 1239.
  • Baffle / Fins – IS 2062
  • Demister – SS 304 / SS 316

Location

  • After – After Cooler in between pipeline. The outlet of the Compressor is at the coolest place on the pipeline.

Types

  • Moisture Separator ( Centrifugalcum Baffle Type)
  • Moisture Separator ( Bafflecum Demister Type)
  • Moisture Separator ( Baffle Type)

Higher Pressure/Range can be provided on demand.

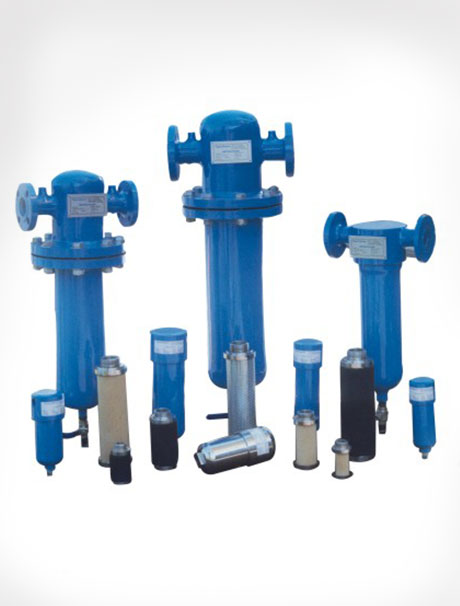

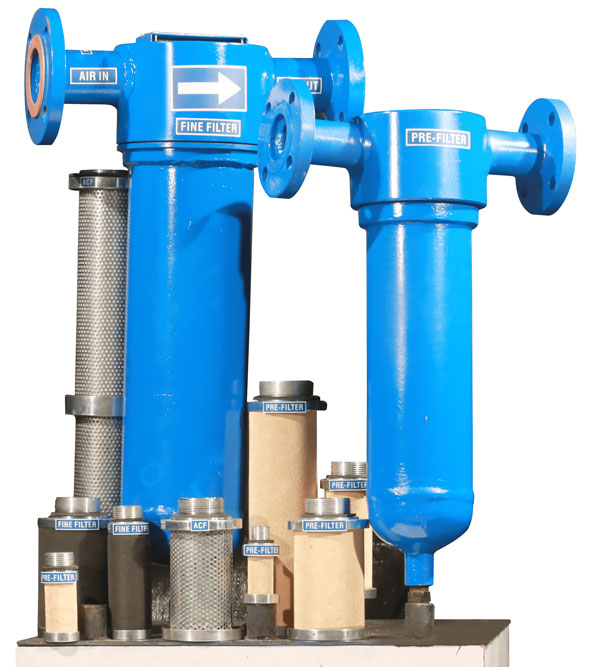

Coalescing Air Filters

Coalescing Air Filters

Housing is successfully manufactured and examined to function at 16 bar (max) working pressure at max 60°C temperature. Drytech Filters with higher temperatures can also be provided according to customer requirements. End conn. supplied upto model 007 is BSP female.

End conn. supplied for model 009 V and onward are of flanges ASA-150# or according to the customer’s choice.

All models are provided with manual drain. Auto drain is optional at extra cost.

Description

The existence of oil, moisture and dust particles in compressed air is commonly known for industrial applications.

The use of Drytech fine filters favours achieving quality air as per ISO 8573 class, which can lead to reduced wear and tear, lower rejections, better product quality and above all significant saving in energy.

Salient Features

  • Least pressure drop
  • MOC aluminium casting/cs- fabricated/ss
  • Range is available for low pressure 1 bar/7-13 bar/as standard/ high pressure
  • Media available- sintered bronze/ micro glass fibre/ activated carbon
  • High temperature/ high pressure range is available
  • Compact design
  • Indigenously manufactured
  • Efficiency achievable up 99.99%
  • Maximum working life
