Home Products PPR-C Pipes

PPR-C Pipes

We are the authorized dealer of the Sree Harikrishna Group.

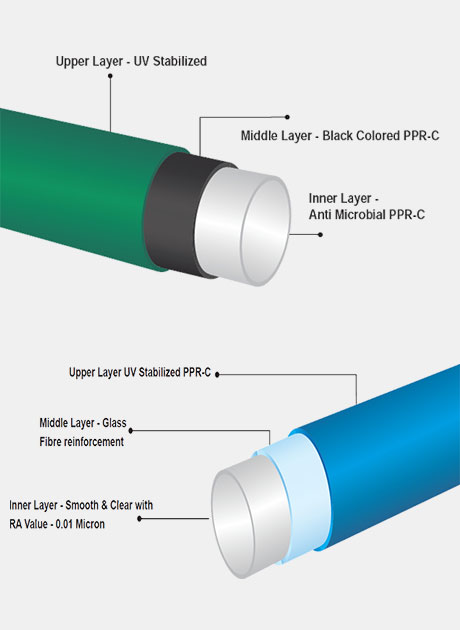

Triple Layer PPR-C Pipes and Fittings

Triple Layer PPR-C Pipes and Fittings

Distributor, Supplier and Exporter

  • Aqua – PPR-C Triple Layer Pipe and Coil
  • Thermo- PPR-FR Composite Pipe – Green
  • Pneumato- PPR-FR Composite Pneumatic Pipe: Blue
  • PPR fittings from 20 mm to 160 mm

UV stabilized PPR-C Top Layer

  • In order to provide protection against UV light with the help of various chemical mechanisms, UV stabilizers comprise various chemical properties.
  • Although colours such as black, and green already have proper resistance to UV rays, the use of UV stabilizers additionally enhances the light and thermal stability of the product.
  • UV stabilizers contribute to long-lasting durability and improve the life of the product.
  • It favours retaining the properties of polymers.

Anti-microbial PPR-C Inner Layer

The anti-microbial layer prevents the growth of bacteria/microbes/algae etc and safeguards the pipes from them. Such Anti-microbial additive is very low migrating, therefore making it endure throughout the complete life of the product.

Black Colored PPR-C Middle Layer

The middle layer provides excellent resistance to UV rays.

Properties

  • Exceptionally long service life
  • Neutral taste and smell
  • Great chemical resistance and physically neutral
  • Insulation for concealed piping networks is not required
  • Resistance to high temperature (95 C)
  • Easy and trustworthy installation
  • No reaction with salts and acids
  • Leak-proof and Frostproof
  • unparalleled and exceptional jointing technique with lifetime security
  • Low laying time and cost
  • Smooth inner surface
  • Recyclable and therefore doesn’t cause environmental hazards
  • Completely hygienic and food graded

Fields of Application

  • Hot and cold water supply pipes
  • Portable water pipe networks for cold and hot water installation
  • Residential buildings, hospitals, hotels, office and school buildings, ship buildings etc.
  • R.O. Water, DM water and pharmaceutical plants for clean water.
  • Transportation of liquid food because of its hygienic behaviour.
  • Pipe networks for rainwater utilization systems.
  • Pipes for agriculture uses and horticulture use.

Product Specification

Aqua PPR-C Triple Layer Pipes
Type Size
PN-06 Pipes 200 MM to 400 MM
PN-10 Pipes 40 MM to 315 MM
PN-16 Pipes 20 MM to 315 MM
PN-20 Pipes 20 MM to 315 MM

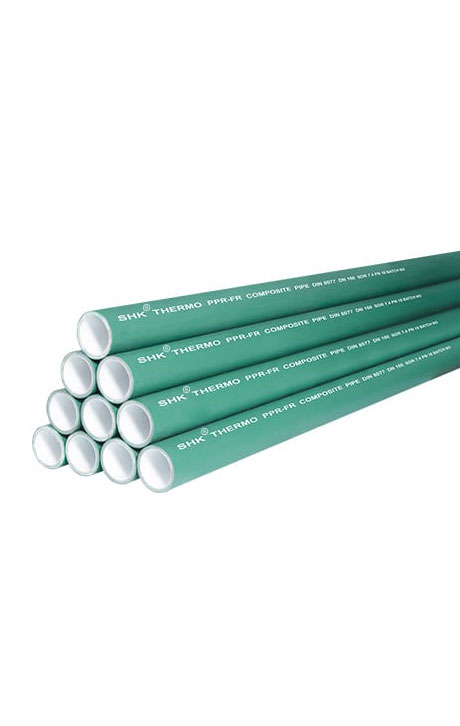

Thermo Thermal PPR Pipes and Fittings

Application

The raw material used for Sree Harikrishna pipes is polypropylene random copolymer ( PP-R). Our advanced PPR-FR ( Fibre Reinforcement ) product is designed with a middle sandwich FR layer with enhanced resistance and strength.

PPR Pipes – Green
  • Industrial systems like conveying fluids like acid, alkaline solutions, effluent and sewage disposal with developed leakproof joints.
  • Chilled water circuit for the refrigeration unit.
  • Cooling water circuit for cooling tower unit.
  • Radiator heating pipes, room heating system, under-floor heating pipes.
Polypropylene random copolymer type 3 corresponds to German DIN standards.
  • Pipes as per DIN 8077 and DIN 8078 standards
  • Fittings as per DIN 16962 part – 5 to 10 standards
Thermo Thermal PPR Pipes and Fittings

Properties

  • Exceptionally long service life
  • Neutral taste and smell
  • Great chemical resistance and physically neutral
  • Insulation for concealed piping networks is not required
  • Resistance to high temperature (95 C)
  • Easy and trustworthy installation
  • No reaction with salts and acids
  • Leak-proof and Frostproof
  • unparalleled and exceptional jointing technique with lifetime security
  • Low laying time and cost
  • Smooth inner surface
  • Recyclable and therefore doesn’t cause environmental hazards

Product Specification

Thermo Thermal PPR Pipes- Green
Type Size
PN – 06 Pipes 200 MM to 400 MM
PN – 10 Pipes 40 MM to 315 MM
PN – 16 Pipes 20 MM to 315 MM
PN – 20 Pipes 20 MM to 315 MM

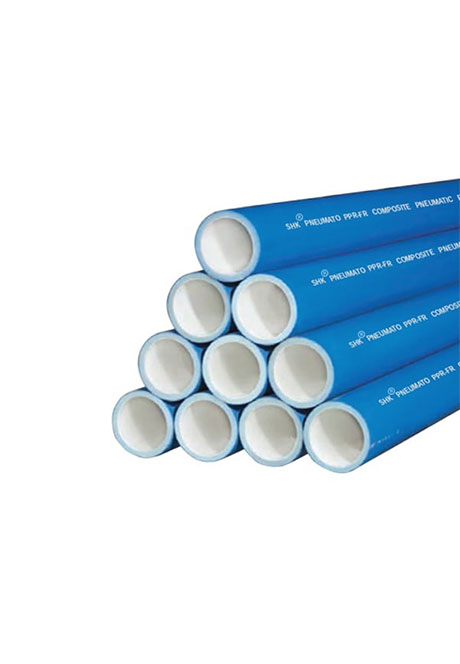

Pneumato Pneumatic PPR FRV2 Pipes and Fittings

Pneumato Pneumatic PPR FRV2 Pipes and Fittings

SHK Flame Retardant Pipes

As Thermoplastic Polyolefin is an organic compound, it burns or decomposes on exposure to fire and eventually produces toxic fumes and smoke, but the flame retardant or compounds that are fire resistant compounds helps to diminish the danger of fire. The existence of the three essential units – fuel, heat and oxygen are important for the occurrence of fire. With the aid of chemical reactions, learning about flame retardance moderates one or multiple of the mentioned features.

A plethora of different kinds of flame retardant additives can be used in thermoplastic polymers which depends on the requirements of individual end-use applications. In the course of combustion, flame retardant additives react with the burning polymer in the vapor phase interrupting at a molecular level, the creation of free radicals and the process of combustion is closed down. This mechanism is generally used with halogenated flame retardant systems.

Application

  • Compressed Air
  • Vacuum Air
  • Instrument Air
  • Nitrogen Air

Enhancing product safety with flame retardant plastics

The use of flame retardant technologies to reduce dangers related to fire is a fundamental necessity of product safety. The sole purpose of a flame retardant system is to hinder and delay the ignition and spread of fire.

Flame Retardant Compounds help mitigate dangers related to fire

  • Increase plastic’s ignition resistance
  • The speed of flame spread is reduced
  • Reduce heat release
  • Smoke and fume generation is reduced

After being exposed to heat or flame, plastics get subjected to pyrolysis which leads to thermal degradation of the resin’s physical properties ( softening and melting ) and discharges gases that are potentially volatile.

Flame retardant plastics seek to resist such conditions with the help of one of the many mechanisms that moderate one or multiple of the elements like fuel, heat, or oxygen, in order for the burning to eventuate.

Although, even with flame retardant treatment, there is no plastic that can be interpreted to be absolutely fireproof. Under events of flashover all plastics, even those that are essentially resistant to fire, will sooner or later combust.

Product Specification

Pneumato Blue PPR Pipe FRV2 Airline Specification
Type Size
PN- 06 Pipes 200 MM to 400 MM
PN- 10 Pipes 50 MM to 315 MM
PN- 16 Pipes 20 MM to 315 MM
PN- 20 Pipes 20 MM to 315 MM
